unity(유니티) vector 함수 전부 알기

2022.2 기준

https://docs.unity3d.com/2022.2/Documentation/ScriptReference/Vector3.html

Unity - Scripting API: Vector3





vector3.back

Vector3(0,0,-1)

vector3.down

Vector3(0,-1,0)

vector3.forward

Vector3(0,0,1)

vector3.left

Vector3(-1,0,0)

vector3.negativeInfinity

음수 무한대 vector3(float.negativeInfinity,float.negativeInfinity,float.negativeInfinity)

vector3.one

Vector3(1,1,1)

vector3.positiveInfinity

양수 무한대 vector3(float.positiveInfinity,float.positiveInfinity,float.positiveInfinity)

vector3.right

Vector3(1,0,0)

vector3.up

Vector3(0,1,0)

vector3.zeo

Vector3(0,0,0)





vector3.magnitude

읽기 전용 길이를 반환합니다 float

vector3.normalized

정규화시킵니다. 크기가 1인 벡터를 반환

vector3.sqrMagnitude

벡터의 길이 제곱 반환















vector3.Angle // public static float Angle(Vector3 from, Vector3 to);

두 벡터의 사이의 각도를 반환합니다. (반환되는 각도는 항상 0~180도 사이입니다)

vector3.ClampMagnitude // public static Vector3 ClampMagnitude(Vector3 vector, float maxLength);

maxLength길이를 넘지 않는 벡터를 반환시킵니다.





public static Vector3 ClampMagnitude(Vector3 vector, float maxLength)
{
  float sqrMagnitude = vector.sqrMagnitude;
  if ((double) sqrMagnitude <= (double) maxLength * (double) maxLength)
    return vector;
  float num1 = (float) Math.Sqrt((double) sqrMagnitude);
  float num2 = vector.x / num1;
  float num3 = vector.y / num1;
  float num4 = vector.z / num1;
  return new Vector3(num2 * maxLength, num3 * maxLength, num4 * maxLength);
}





void Start()
    {
        Vector3 a = new Vector3(50, 0, 0);
        Vector3 b = new Vector3(15, 0, 0);
        Vector3 c = new Vector3(10, 0, 0);
        Vector3 d = new Vector3(3, 0, 0);
        Debug.Log(Vector3.ClampMagnitude(a, 10));
        //결과 (10,0,0)
        Debug.Log(Vector3.ClampMagnitude(b, 10));
        //결과 (10,0,0)
        Debug.Log(Vector3.ClampMagnitude(c, 10));
        //결과 (10,0,0)
        Debug.Log(Vector3.ClampMagnitude(d, 10));
        //결과 (3,0,0)
    }

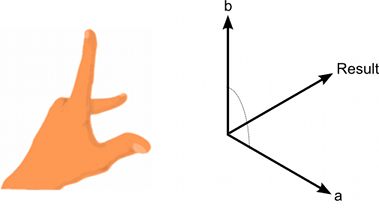

vector3.Cross // public static Vector3 Cross(Vector3 lhs, Vector3 rhs);

두 벡터의 수직벡터를 반환합니다.



https://docs.unity3d.com/2022.2/Documentation/ScriptReference/Vector3.Cross.html

public static Vector3 Cross(Vector3 lhs, Vector3 rhs) => new Vector3((float) ((double) lhs.y * (double) rhs.z - (double) lhs.z * (double) rhs.y), (float) ((double) lhs.z * (double) rhs.x - (double) lhs.x * (double) rhs.z), (float) ((double) lhs.x * (double) rhs.y - (double) lhs.y * (double) rhs.x));







vector3.Distance // public static float Distance(Vector3 a, Vector3 b);

두 벡터의 사이의 길이를 반환합니다.

public static float Distance(Vector3 a, Vector3 b)
{
  float num1 = a.x - b.x;
  float num2 = a.y - b.y;
  float num3 = a.z - b.z;
  return (float) Math.Sqrt((double) num1 * (double) num1 + (double) num2 * (double) num2 + (double) num3 * (double) num3);
}

vector3.Dot // public static float Dot(Vector3 lhs, Vector3 rhs);

두벡터의 내적을 반환합니다.



public static float Dot(Vector3 lhs, Vector3 rhs) => (float) ((double) lhs.x * (double) rhs.x + (double) lhs.y * (double) rhs.y + (double) lhs.z * (double) rhs.z);





vector3.Lerp // public static Vector3 Lerp(Vector3 a, Vector3 b, float t);

두 벡터의 선형보간한 값을 반환합니다.



public static Vector3 Lerp(Vector3 a, Vector3 b, float t)
{
  t = Mathf.Clamp01(t);
  return new Vector3(a.x + (b.x - a.x) * t, a.y + (b.y - a.y) * t, a.z + (b.z - a.z) * t);
}

vector3.LerpUnclamped

두 벡터의 선형보간한 값을 반환합니다(최소, 최대 제한이 없음)



public static Vector3 LerpUnclamped(Vector3 a, Vector3 b, float t) => new Vector3(a.x + (b.x - a.x) * t, a.y + (b.y - a.y) * t, a.z + (b.z - a.z) * t);

vector3.Max // public static Vector3 Max(Vector3 lhs, Vector3 rhs);

두 벡터 요소중 가장 큰 수를 모아서 하나의 벡터로 만듭니다.



public Vector3 a = new Vector3(1, 2, 3);
public Vector3 b = new Vector3(4, 3, 2);

    void Example()
    {
        print(Vector3.Max(a, b));
        // 결과 (4.0f, 3.0f, 3.0f)
    }

public static Vector3 Max(Vector3 lhs, Vector3 rhs) => new Vector3(Mathf.Max(lhs.x, rhs.x), Mathf.Max(lhs.y, rhs.y), Mathf.Max(lhs.z, rhs.z));







vector3.Min // public static Vector3 Min(Vector3 lhs, Vector3 rhs);

두벡터 요소중 가장 작은 수를 모아서 하나의 벡터로 만듭니다.



public Vector3 a = new Vector3(1, 2, 3);
public Vector3 b = new Vector3(4, 3, 2);

    void Example()
    {
        print(Vector3.Min(a, b));
        //결과 (1.0f, 2.0f, 2.0f)
    }



public static Vector3 Min(Vector3 lhs, Vector3 rhs) => new Vector3(Mathf.Min(lhs.x, rhs.x), Mathf.Min(lhs.y, rhs.y), Mathf.Min(lhs.z, rhs.z));



vector3.MoveTowards // public static Vector3 MoveTowards(Vector3 current, Vector3 target, float maxDistanceDelta);

asdasd

current 벡터를 target 벡터의 위치로 maxDistanceDelta 속도만큼 이동합니다

(target 거리보다 더 멀리 이동하지 않습니다.)



public static Vector3 MoveTowards(
  Vector3 current,
  Vector3 target,
  float maxDistanceDelta)
{
  float num1 = target.x - current.x;
  float num2 = target.y - current.y;
  float num3 = target.z - current.z;
  float d = (float) ((double) num1 * (double) num1 + (double) num2 * (double) num2 + (double) num3 * (double) num3);
  if ((double) d == 0.0 || (double) maxDistanceDelta >= 0.0 && (double) d <= (double) maxDistanceDelta * (double) maxDistanceDelta)
    return target;
  float num4 = (float) Math.Sqrt((double) d);
  return new Vector3(current.x + num1 / num4 * maxDistanceDelta, current.y + num2 / num4 * maxDistanceDelta, current.z + num3 / num4 * maxDistanceDelta);
}



vector3.Normalize // public static Vector3 Normalize(Vector3 value);

정규화시킵니다. 벡터의 크기를 1로 만듭니다

정규화되면 벡터는 같은 방향을 유지하지만 길이는 1.0입니다.



public static Vector3 Normalize(Vector3 value)
{
  float num = Vector3.Magnitude(value);
  return (double) num > 9.99999974737875E-06 ? value / num : Vector3.zero;
}

vector3.OrthoNormalize // public static void OrthoNormalize(ref Vector3 normal, ref Vector3 tangent, ref Vector3 binormal);

벡터들을 정규화하고 서로 수직으로 만듭니다.

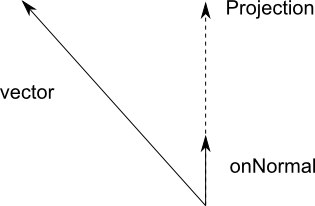

vector3.Project // public static Vector3 Project(Vector3 vector, Vector3 onNormal);

벡터를 다른 벡터에 투영합니다.

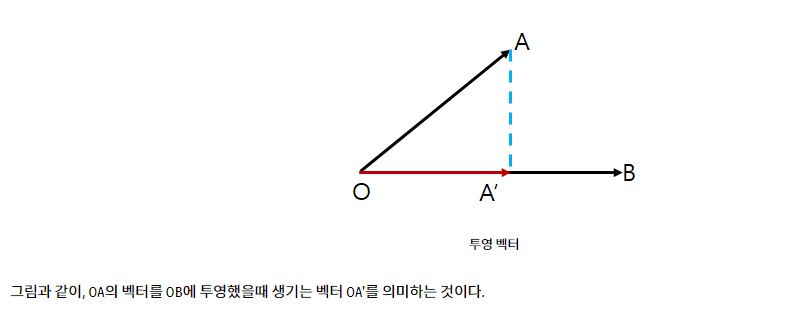

vector3.ProjectOnPlane

https://lalyns.tistory.com/7



public static Vector3 Project(Vector3 vector, Vector3 onNormal)
{
  float num1 = Vector3.Dot(onNormal, onNormal);
  if ((double) num1 < (double) Mathf.Epsilon)
    return Vector3.zero;
  float num2 = Vector3.Dot(vector, onNormal);
  return new Vector3(onNormal.x * num2 / num1, onNormal.y * num2 / num1, onNormal.z * num2 / num1);
}

vector3. ProjectOnPlane// public static Vector3 ProjectOnPlane(Vector3 vector, Vector3 planeNormal);

평면에 수직인 법선으로 정의된 평면에 벡터를 투영합니다.



public static Vector3 ProjectOnPlane(Vector3 vector, Vector3 planeNormal)
{
  float num1 = Vector3.Dot(planeNormal, planeNormal);
  if ((double) num1 < (double) Mathf.Epsilon)
    return vector;
  float num2 = Vector3.Dot(vector, planeNormal);
  return new Vector3(vector.x - planeNormal.x * num2 / num1, vector.y - planeNormal.y * num2 / num1, vector.z - planeNormal.z * num2 / num1);
}

https://www.youtube.com/watch?v=Q6LC1ubawCo&t=1s





vector3.Reflect // public static Vector3 Reflect(Vector3 inDirection, Vector3 inNormal);



반사각을 반환합니다.



public static Vector3 Reflect(Vector3 inDirection, Vector3 inNormal)
{
  float num = -2f * Vector3.Dot(inNormal, inDirection);
  return new Vector3(num * inNormal.x + inDirection.x, num * inNormal.y + inDirection.y, num * inNormal.z + inDirection.z);
}



vector3.RotateTowards //public static Vector3 RotateTowards(Vector3 current, Vector3 target, float maxRadiansDelta, float maxMagnitudeDelta);

movetowards와 유사합니다 벡터의 위치가 아닌 방향으로 처리됩니다.

표적의 방향을 향해서 오버되지 않고 정확하게 설정됩니다.

vector3.Scale // public static Vector3 Scale(Vector3 a, Vector3 b);

두 벡터를 곱합니다



void Example()
    {
        print(Vector3.Scale(new Vector3(1, 2, 3), new Vector3(2, 3, 4)));
        //결과 (2,6,12)
    }

public static Vector3 Scale(Vector3 a, Vector3 b) => new Vector3(a.x * b.x, a.y * b.y, a.z * b.z);

vector3.SignedAngle //public static float SignedAngle(Vector3 from, Vector3 to, Vector3 axis);

각도를 반환합니다 (-180~180도)

from 에서

to 에게

axis 축

보통 두 벡터 사이의 각도를 구할 때 사용합니다.

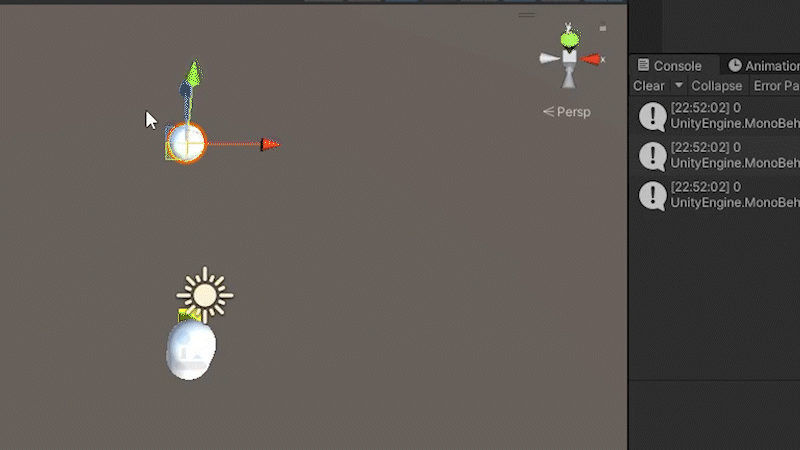

public Transform target;//원형

void Update()
{
    Vector3 targetDir = target.position - transform.position;
    Vector3 forward = transform.forward;
    float angle = Vector3.SignedAngle(forward, targetDir, Vector3.up);
    print(angle);
    //각도

}













public static float SignedAngle(Vector3 from, Vector3 to, Vector3 axis)
{
  float num1 = Vector3.Angle(from, to);
  float num2 = (float) ((double) from.y * (double) to.z - (double) from.z * (double) to.y);
  float num3 = (float) ((double) from.z * (double) to.x - (double) from.x * (double) to.z);
  float num4 = (float) ((double) from.x * (double) to.y - (double) from.y * (double) to.x);
  float num5 = Mathf.Sign((float) ((double) axis.x * (double) num2 + (double) axis.y * (double) num3 + (double) axis.z * (double) num4));
  return num1 * num5;
}



vector3.Slerp // public static Vector3 Slerp(Vector3 a, Vector3 b, float t);

구면선형보간



https://www.youtube.com/watch?v=AzmVVPWao8U



public static Vector3 Slerp(Vector3 a, Vector3 b, float t)
{
  Vector3 ret;
  Vector3.Slerp_Injected(ref a, ref b, t, out ret);
  return ret;
}

vector3.SlerpUnclamped

구면선형보간 제한치 없음

vector3.SmoothDamp // public static Vector3 SmoothDamp(Vector3 current, Vector3 target, ref Vector3 currentVelocity, float smoothTime, float maxSpeed = Mathf.Infinity, float deltaTime = Time.deltaTime);

target 벡터를 향해서 이동합니다 (부드러운 이동) 일반적으로 카메라 이동할 때 사용









public static Vector3 SmoothDamp(
  Vector3 current,
  Vector3 target,
  ref Vector3 currentVelocity,
  float smoothTime)
{
  float deltaTime = Time.deltaTime;
  float maxSpeed = float.PositiveInfinity;
  return Vector3.SmoothDamp(current, target, ref currentVelocity, smoothTime, maxSpeed, deltaTime);
}
